06- Collapsing Circuit with Capacitor

$26.25$76.25

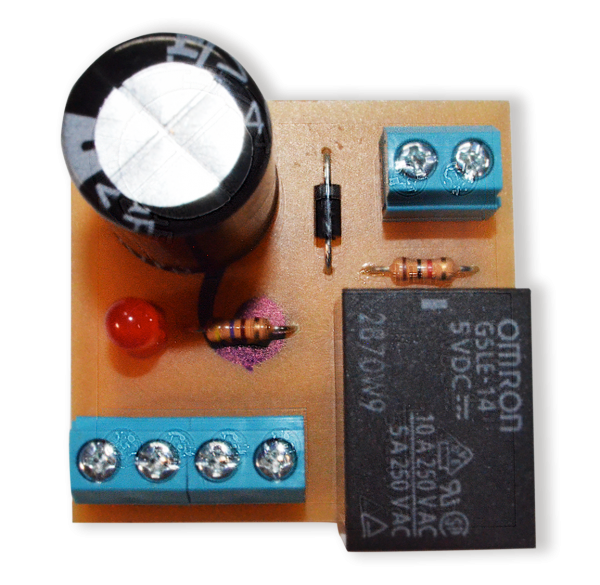

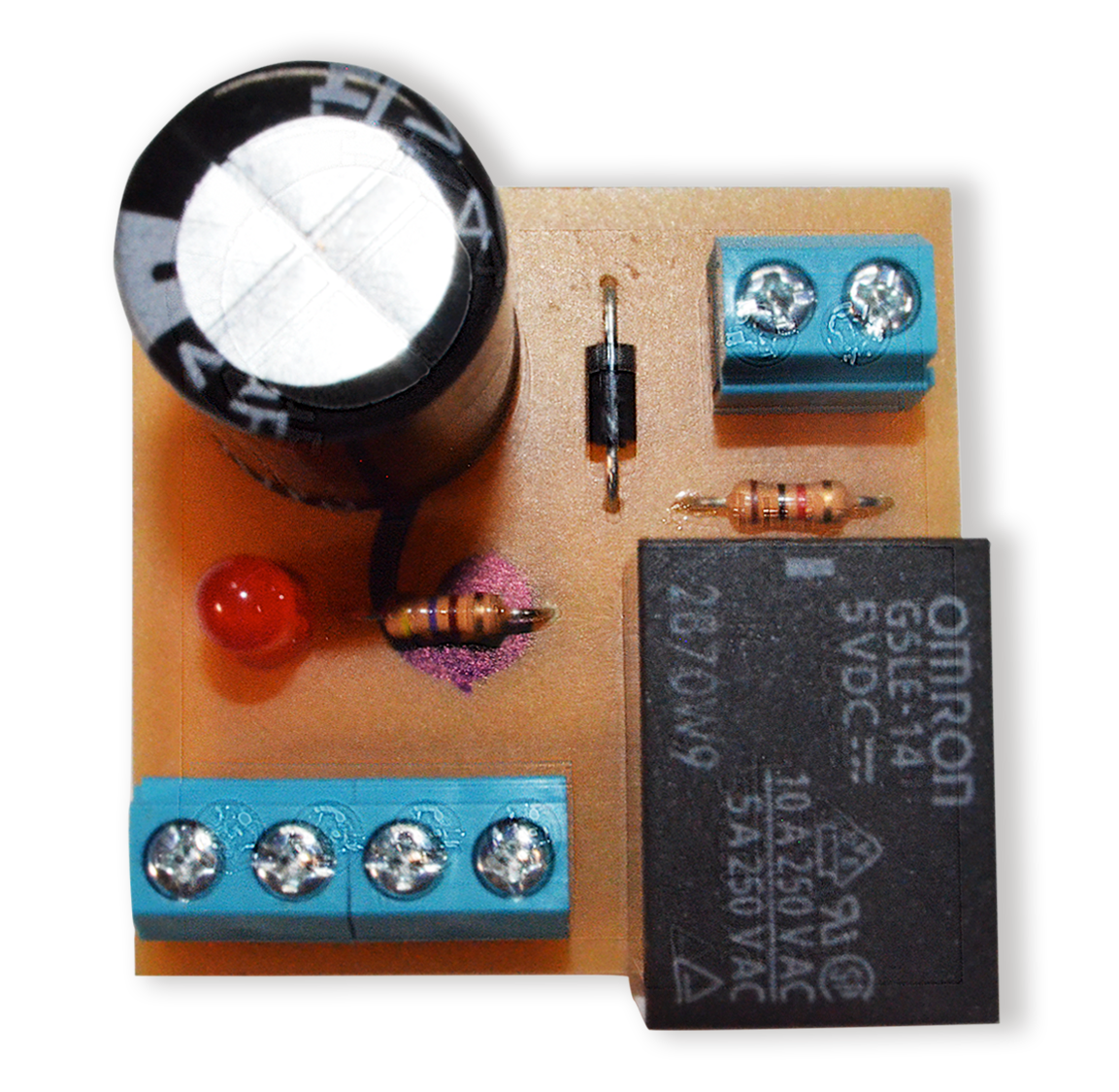

This circuit functions the same as the typical collapsing circuit that uses two batteries except here, we replace one of those batteries (B2) with a diode and capacitor (D1, C1). This circuit is more difficult for the EOD Technician to identify because the second battery has been replaced with a capacitor (C1).

Choose “Full Kit (PCB + Parts)” for a solder kit that includes all required parts for the build, a quick reference card and support from our amazing community of makers.

Choose “Assembled and Tested” for a fully assembled and tested ready to use device and reference card.
