ATTINY 85 Light Meter

Please sign up for the course before starting the lesson.

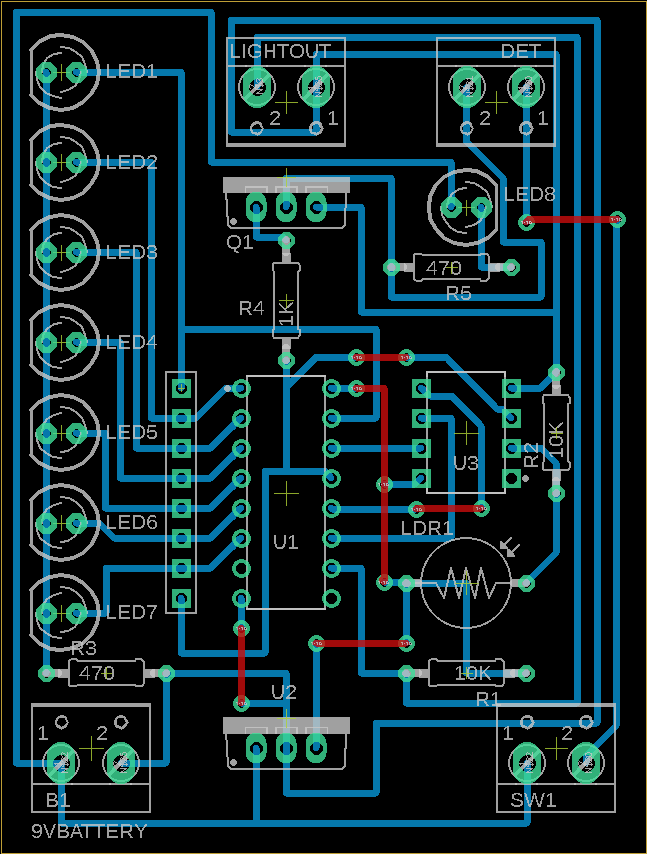

Lab OverviewSimilar to the Arduino Light meter, this circuit fires when light reaches a selected level. A shift register was used to drive the LEDs since the ATTINY85 does not have enough digital pins to drive 7 LEDs.Tools / Parts / Test EquipmentSoldering IronHelping Hands Solder Multimeter
