URDU NOR Light Simplified

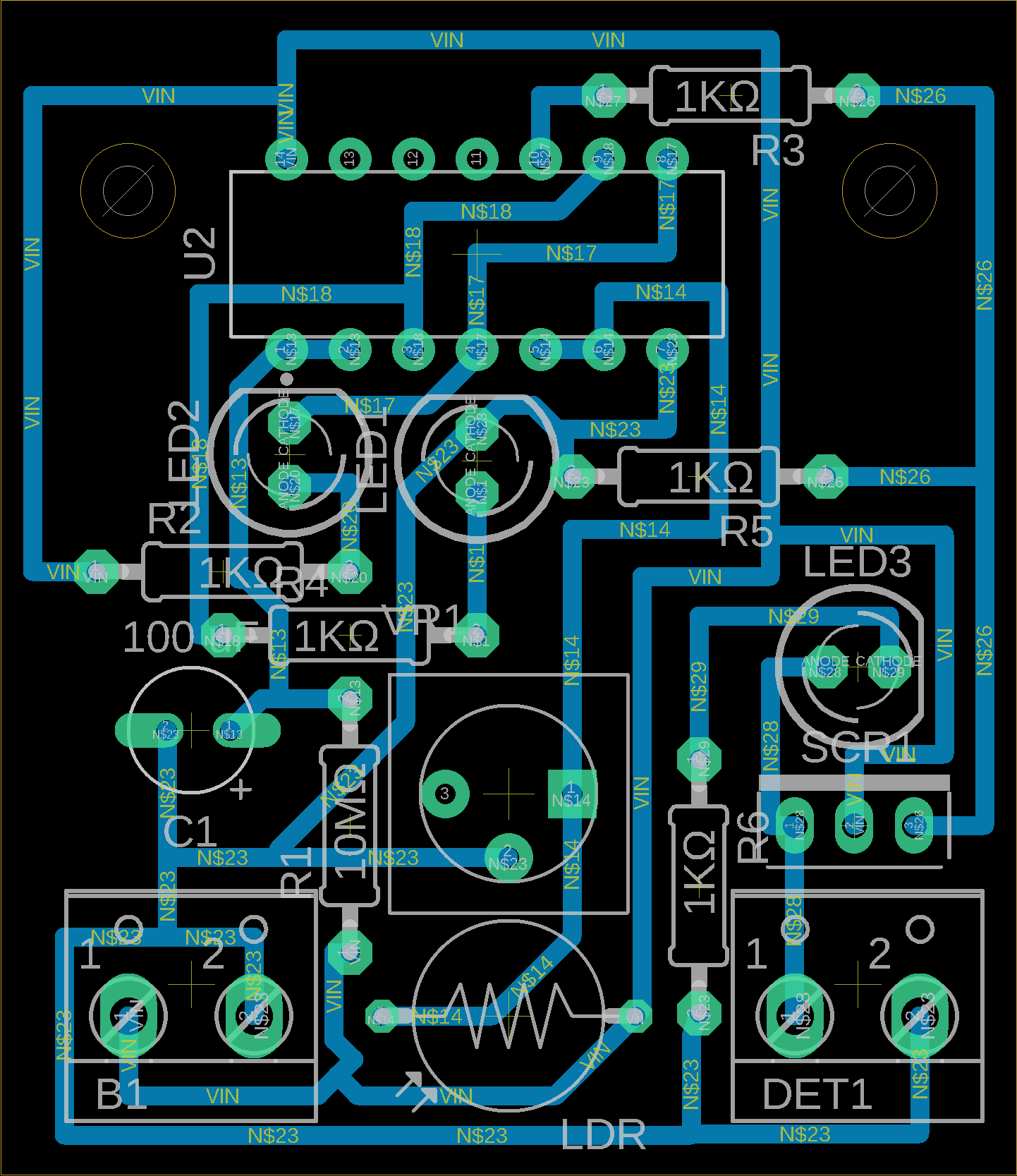

Lab Overview A Quad NOR gate IC is used to ensure the RC Timer has elapsed before the LDR can trigger a SCR to fire a detonator. This circuit simplifies the original design by removing redundant connects and streamlining the layout. Tools / Parts / Test Equipment Soldering IronHelping Hands Solder Multimeter
