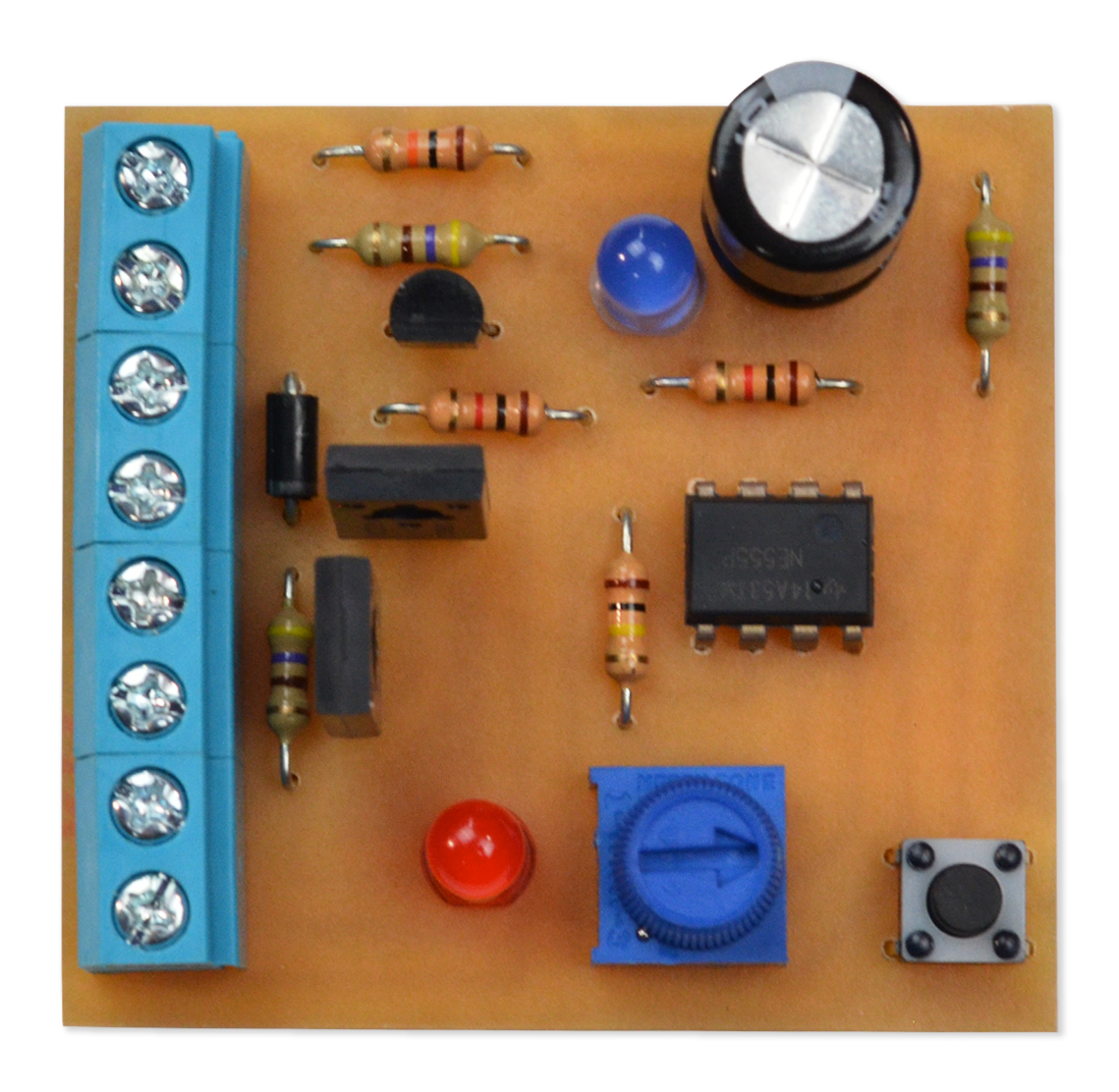

107- Nokia Astable 555 with Variable Reset

$27.50$77.50

Initial reporting on the Nokia 3310 Op-Amp was incorrect. Originally it was believed that the circuit contained a 555 Timer vice, the Op-Amp. This circuit explores what it would take to create using a simple 555 timer in an astable configuration. After the 555 timer arms the circuit, a modified Nokia Cellphone triggers the final SCR to detonate on command.



Choose “Full Kit (PCB + Parts)” for a solder kit that includes all required parts for the build, a quick reference card and support from our amazing community of makers.



Choose “Assembled and Tested” for a fully assembled and tested ready to use device and reference card.
