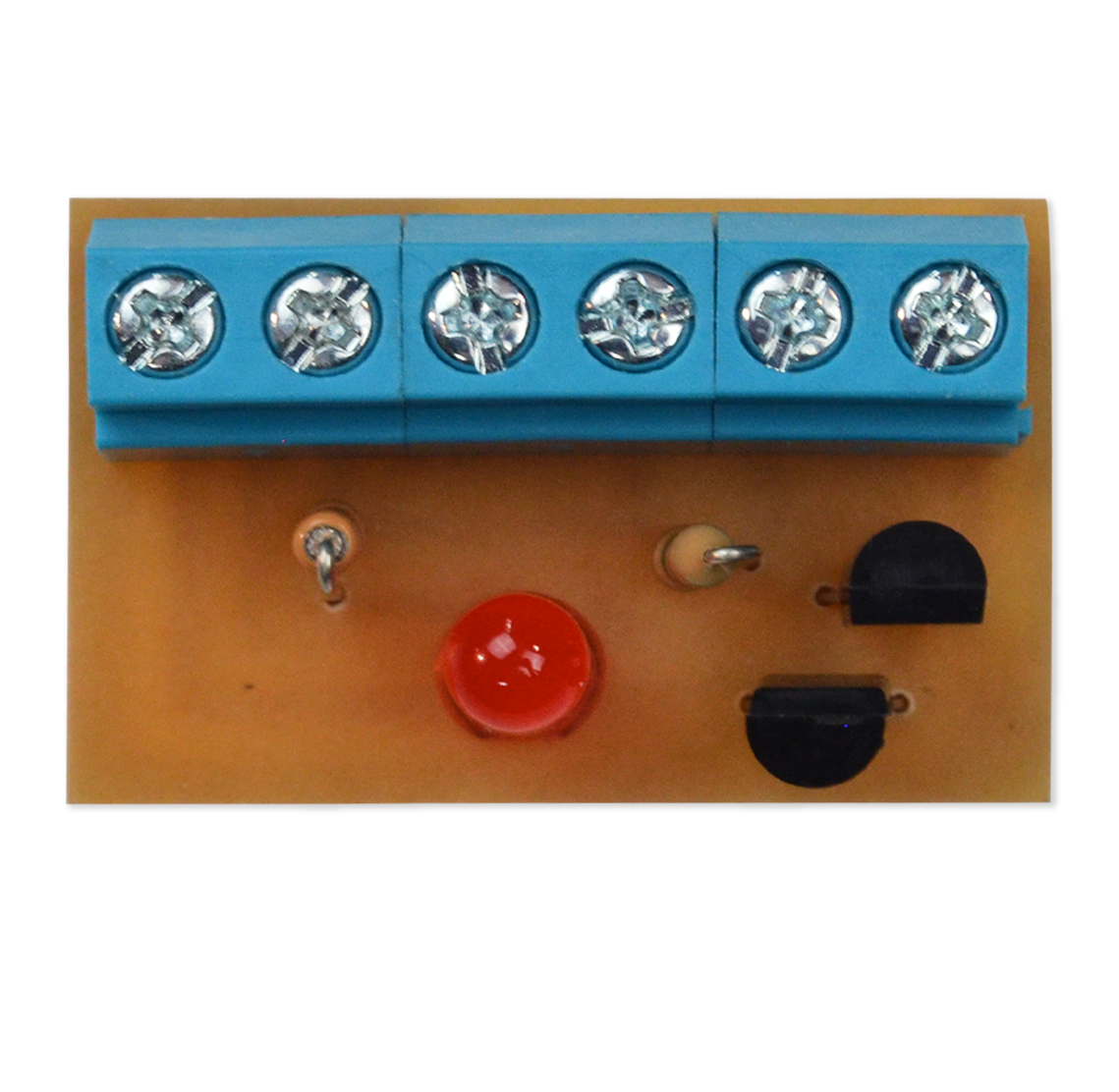

109- Transistor Trap Det Single

$14.95$64.95

This circuit is designed to be used in a Category A scenario for hand entry training. The circuit is a derivative of a collapsing circuit but instead of a relay it uses two bipolar junction transistors (1 NPN and 1 PNP) and two detonators (one real and one fake). One of the detonators is a trap detonator and if cut out of the circuit, it will cause the circuit to function as designed.



Choose “Full Kit (PCB + Parts)” for a solder kit that includes all required parts for the build, a quick reference card and support from our amazing community of makers.



Choose “Assembled and Tested” for a fully assembled and tested ready to use device and reference card.
