17- RFT-2

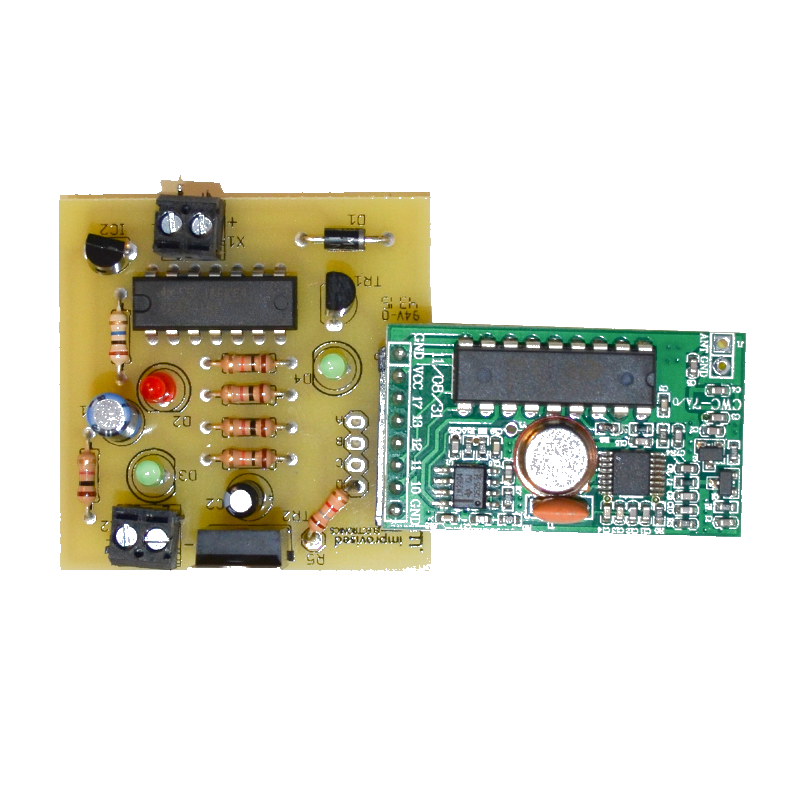

This circuit is a copy of the original RFT-2 but has been streamlined for milling. It uses a Quad NOR gate to arm the circuit in conjunction with an RC TIMER. After the arming timer completes, the CWC7 radio module becomes activated. The bomber can select the prefered decoded modulation. When the CWC7 successfully decodes the preselected modulation the Darlington Pair fires a single detonator.

Choose “Full Kit (PCB + Parts)” for a solder kit that includes all required parts for the build, a quick reference card and support from our amazing community of makers.

Choose “Assembled and Tested” for a fully assembled and tested ready to use device and reference card.
