Eagle CAD for EOD 16-20 August, 2021

$2,425.00

45 in stock

Description

$2,425.00

Virtual MTT- Single Seat (with kit)

This course will teach you to design IED circuit boards with Eagle CAD. You will get a head start on the process with our comprehensive parts library that has all the parts you need for 99% of the IED circuits. This course is a mix of a CAD course and an electronics course in that you will learn to design electronics in the schematic view and layout PCBs in the board view. We will also cover how to add parts to the library in the rare case that you need to. From there we will show you how to produce low runs of PCBs in house using a milling machine or with the included acid etching kit.



Day 1: Eagle Installation and Configuration

Install Eagle and configure the UI and parts libraries. We will open and edit projects to get a feel for the interface. We will then configure the Design Rules Check to match our PCB production method. Getting set up correctly will ensure we are successful.

Day 2: Schematic View: Designing Circuits from Scratch Using the Parts Library

Learn to design PCBs like an electrical engineer. We will be looking at example circuits from OSINT and reverse engineering the designs using the parts in the parts library. This will require reviewing data sheets and setting up test circuits on the breadboard to verify our designs.

Day 3: Layout View:

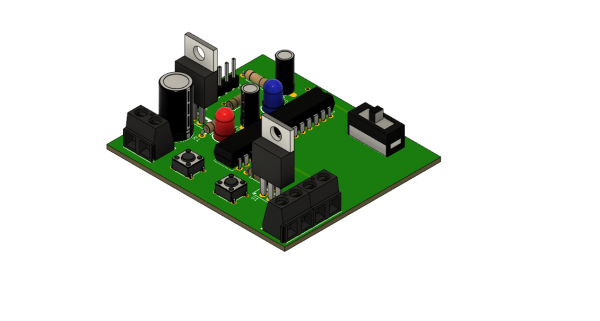

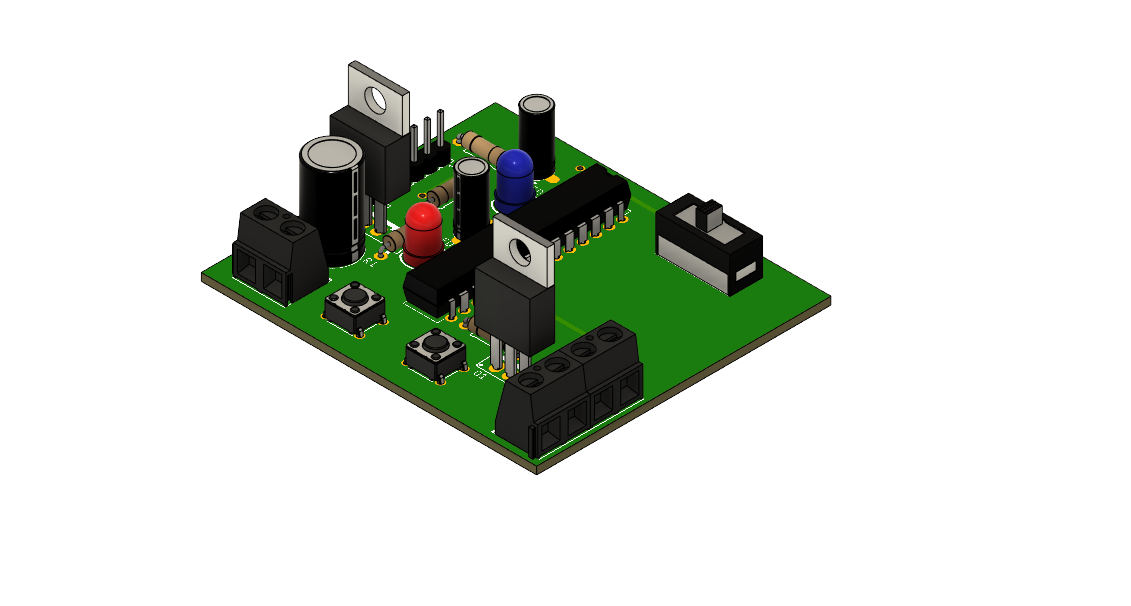

You will learn how to properly lay out a PCB to minimize the manufacturing time and cost. We will show you which traces should be fat and which ones can be skinny and why. The lab for this day will be making a HopeRF device with sensor of your choice.

Day 4: Library Editor

Design and print explosive tools. Learn which materials hold water and how to orient prints for maximum tool performance.

Day 5: Capstone Project- Design and Manufacture Resistor Substitution Device and Alarm Board

This day of labs will result in the production of a wire attack trainer and a resistor substitution device.



All kit and training materials will be provided and retained by the students at the end of the course. Expect to complete this challenging course with materials to go back and train your unit.

Tuition must be paid in advance of course. Tuition is for one student.



Deliverables:

  1. Electronics Kit- All of the parts in the library (One for online by the seat)
  2. Online Course (One Student)
  3. One Year Eagle and Fusion 360 License
  4. Student Training Notes (Online)
  5. CAD files (from the labs)
  6. Certificate of Completion





Note: Students must supply their own computer with the following minimum specifications:

Windows
Operating System Windows 7 or newer
CPU 64-bit processor
Memory 3GB RAM (4GB recommended)
Internet DSL internet connection or faster
Storage At least 650MB of free space
Mac
Operating System OS® X Yosemite (10.10.x), El Capitan (10.11.x), or macOS® Sierra (10.12)
CPU 64-bit processor
Memory 3GB RAM (4GB recommended)
Internet DSL internet connection or faster
Storage At least 650MB of free space
Linux
Operating System Intel PC-based Linux with 2.6 kernel
CPU Needs to support SSE
Graphics X11 with a minimum color depth of 8 bpp
Libraries libssl.so.1.0.0
libcrypto.so.1.0.0

For the 64 bit version of Autodesk EAGLE, you’ll need libc.so.6 with subversion GLIBC_2.14 or higher.

Internet DSL internet connection or faster
Storage At least 650MB of free space
