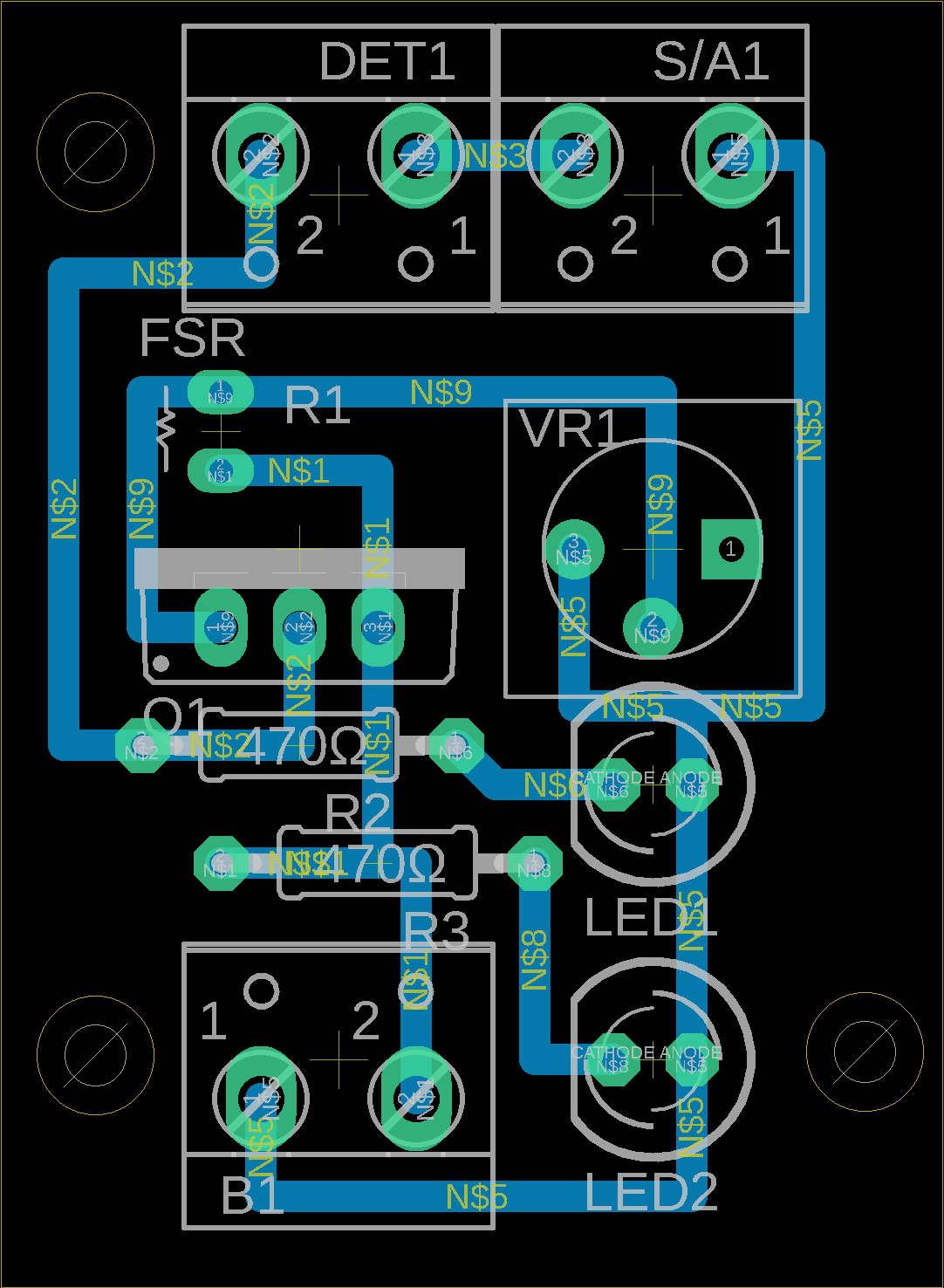

144- FSR Pressure Release FET

This circuit uses a Force Sensing Resistor as a pressure release switch. The FSR is in series with VR1, and they form a voltage divider. As long as there is weight on the FSR, not enough voltage is felt on the N Channel MOSFET to cause it to conduct.

• Download Reference Guide (.PDF)
• Download .BTM File

The parts in this kit will allow the student to complete this lab.

Choose “Full Kit (PCB + Parts)” for a solder kit that includes all required parts for the build, a quick reference card and support from our amazing community of makers.

Choose “Assembled and Tested” for a fully assembled and tested ready to use device and reference card.
