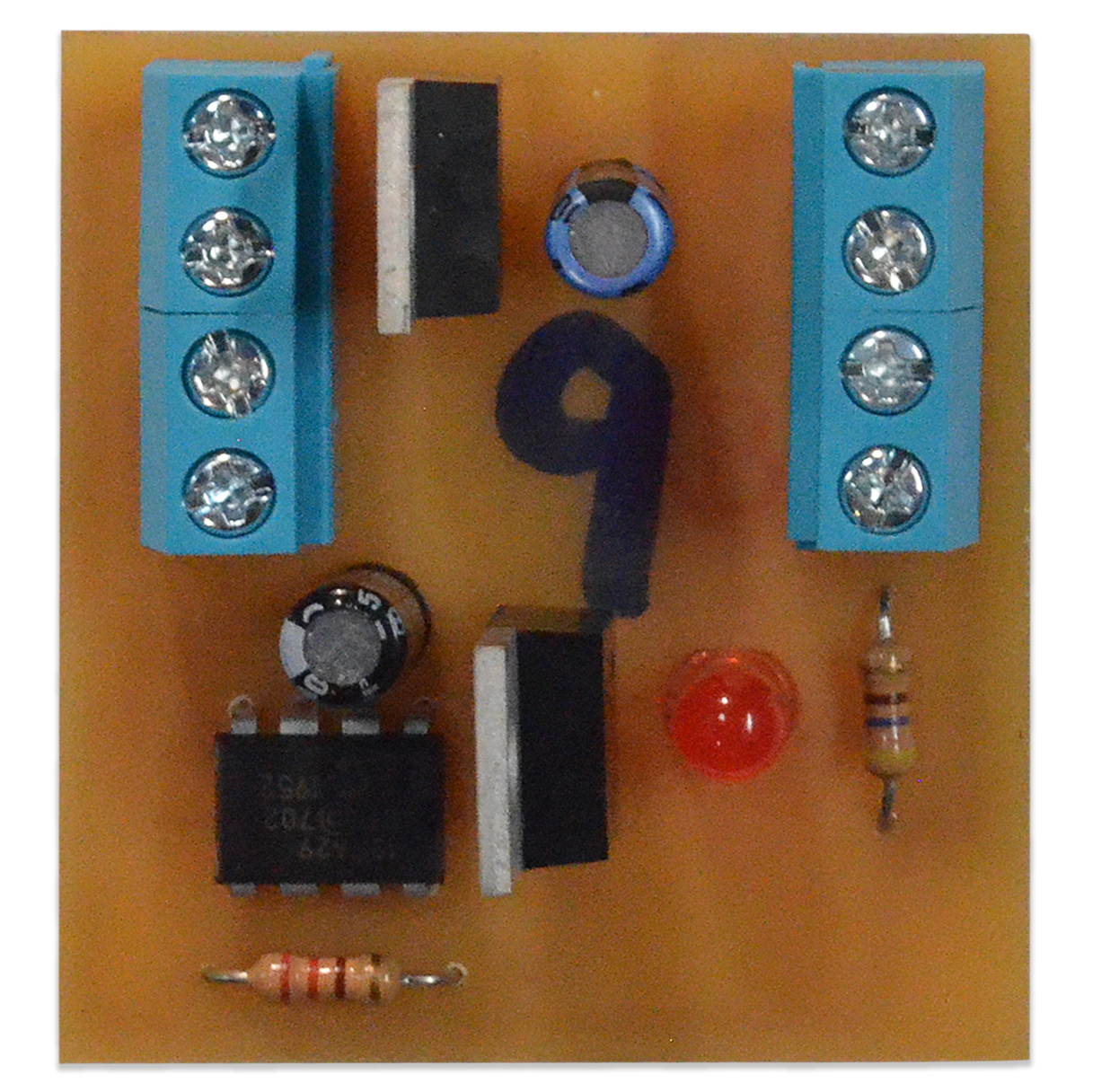

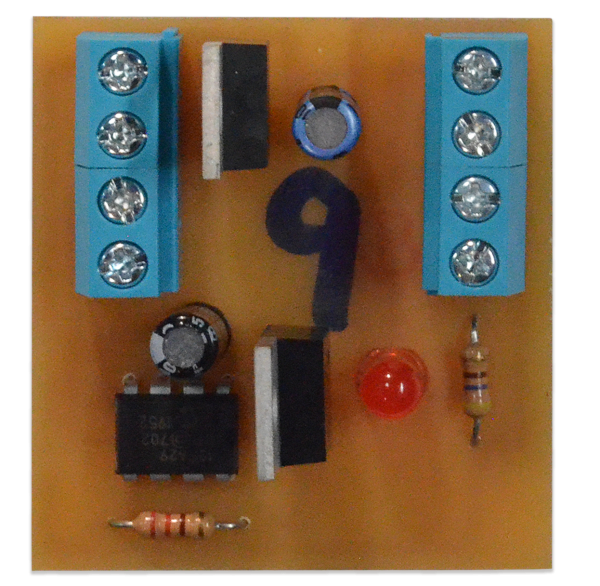

09- PIC12 NCNO


After a short internal timer, the microcontroller detects whether the zone is open or closed. The microcontroller saves the initial state and sits idle until a change from that state occurs. The microcontroller will then send a high to the Darlington Pair that will fire a single detonator.


Choose “Full Kit (PCB + Parts)” for a solder kit that includes all required parts for the build, a quick reference card and support from our amazing community of makers.


Choose “Assembled and Tested” for a fully assembled and tested ready to use device and reference card.
