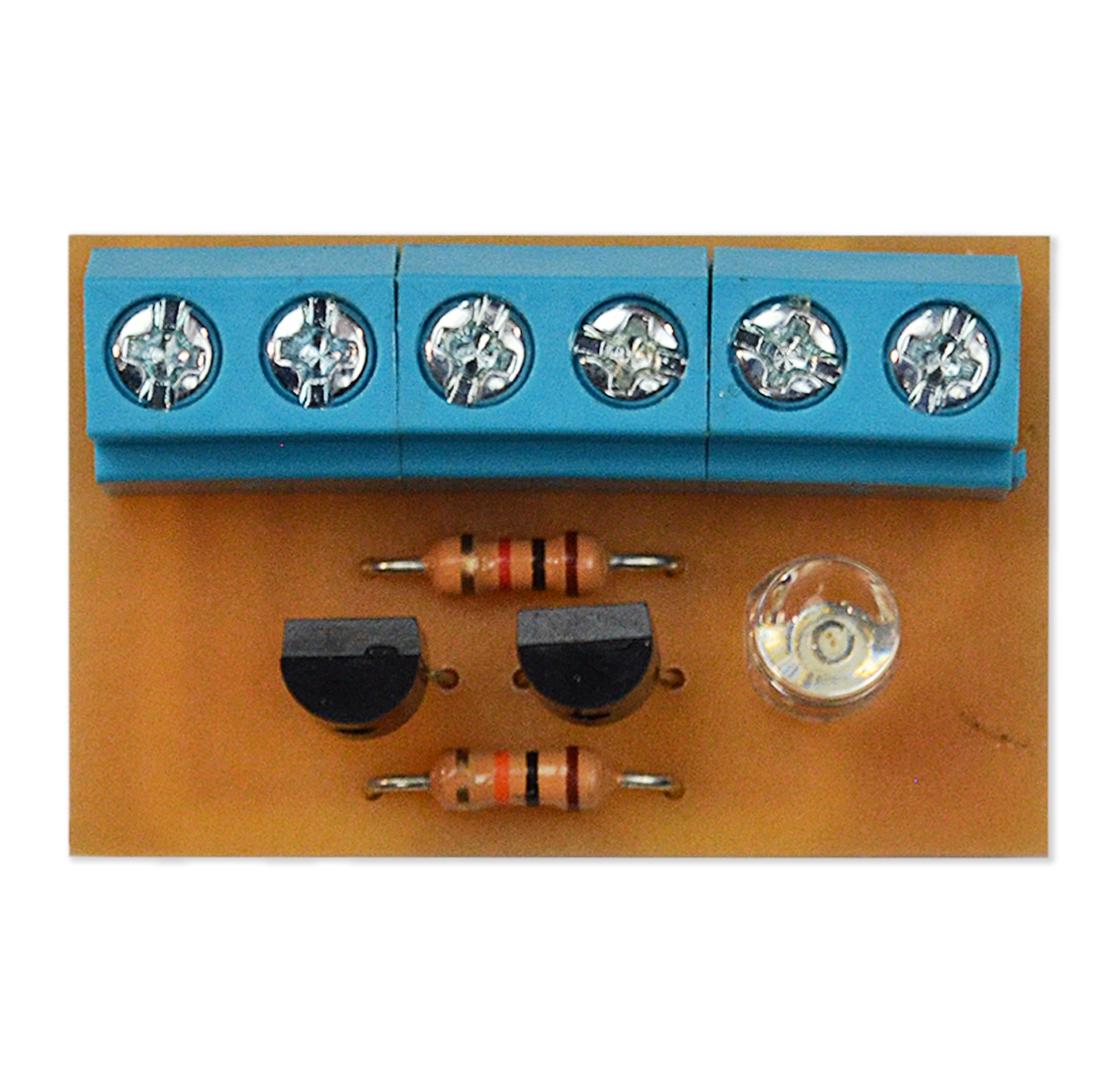

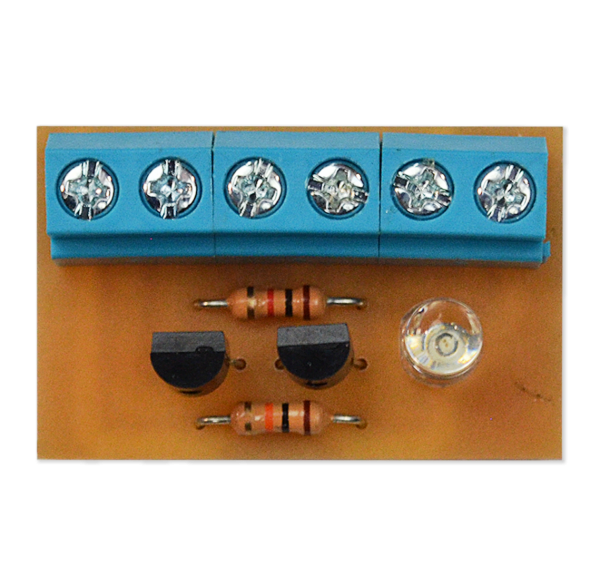

112- Simple Transistor Float Switch

$15.50$65.50

This circuit is pulled from the URDU Basic Electronics book. It uses a float switch (ball switch) inside a container. One end of the float switch is secured to the container and as the container fills with water the other end of the switch rises. When the liquid level is high enough, the ball inside the switch rolls down and contacts the leads. Completing the circuit.



Choose “Full Kit (PCB + Parts)” for a solder kit that includes all required parts for the build, a quick reference card and support from our amazing community of makers.



Choose “Assembled and Tested” for a fully assembled and tested ready to use device and reference card.
