EOD Electronics

$19,250.00 – $24,650.00

One Ultimate EOD Electronics Reference Guide included for each student! Check it out here!





Save on cost by choosing ‘Virtual MTT,’ and we will ship your kits to you and stream the class live to your unit from our studios in San Diego!

SKU: N/A Category:

Description

EOD ELECTRONICS (5 DAY) 40HRS (Price includes course and kit for up to 15 students)

Schedule of Events:

Day 1: DC Theory (Resistors, Batteries, Capacitors and Switches)

Lecture: The lecture is focused around the various passive components found in IEDs and the foundational concepts that explain their behavior in IED circuits. These concepts will also be related to EOD procedures by examining how DET Diagnostics and Ohm’s Law line up.

Lab:

  • Multimeter tutorial.
  • Breadboard simple circuits and test with supplied multimeter. Observe capacitor charging and voltages across open, closed and EOL switches.
  • Solder breadboard leads to switches.
Day 2: Relays, Diodes, Transistors, MOSFETs, and SCRs

Lecture: The lecture is focused on the common firing switches used in IEDs in the past 20 years. Students are introduced to electromechanical and semiconductor firing switches through their Schematic Symbols, Data Sheets and Example IED Circuits.

Lab:

  • Breadboard five historical IEDs using supplied components.
  • Build Dual SCR IED Circuit Board.
  • Build RC Timer Board.



Day 3: IC Chips, Logic Chips and RCIED Circuits

Lecture: This lecture will cover IC chips used in IEDs historically and their evolution into the Victim Operated and RCIED devices from recent conflicts.

Lab:



Day 4: Programming Concepts and Arduino Applied to IEDs

Lecture: This lecture is focused on dividing and classifying the microcontrollers used in IEDs and the process of developing code and hardware for an IED. Practical examples of historical microcontroller IED circuits will be presented and adapted for the Arduino Lab

Lab:

  • Install Arduino IDE and libraries.
  • Build Arduino Light Meter (from source code).
  • Build Arduino PIR Counter.
  • Build Arduino RFM95 Communication.



Day 5: Alarm Theory & Wire Diagnostics



Lab:

We will start off with the relevant portions of basic alarm theory to relate the principles of security systems to IEDs. Students will learn different wire configurations for alarm sensors and how to establish wire pairs for wire attack. Students will then use the electronics principles they have learned behind wire and detonator diagnostics to perform tabletop defeat procedures on several different wire attack cases.



We suggest using your First Line Kit for this section but it can be accomplished with the student kit provided.



Basic Alarm Theory
Multimeter and Current Meter
Specialized Probes and Wire Access
Wire Diagnostics (Establishing Wire Pairs)
Wire Attack (Implementing Switch Defeat)
Detonator Diagnostics
Practical Exercises



Deliverables:

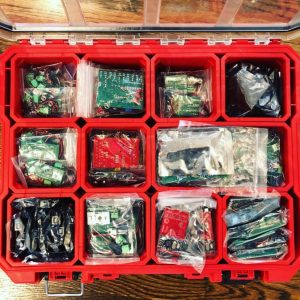

  • Lab kits (Breadboard, Multimeter, Soldering Iron, Parts Kit, COTs timer and DTMF Radio, Arduino boards and corresponding device builds)

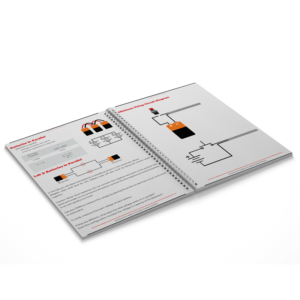

  • Ultimate EOD Electronics Reference Guide with schematics & diagrams
  • CAD files and source code (from the labs)
  • Certificate of Completion

Includes lifetime access to course materials.
