IE-ECMFC-1 ECM Function Check System
$9,999.00
Portable RF monitoring system providing real-time pass/fail verification of man-portable ECM systems. Covers 1 MHz – 6 GHz. Full-spectrum sweep in under 1 second. Battery-powered, backpack-portable, deploys in under 2 minutes.
Description
IE-ECMFC-1 ECM Function Check System
The IE-ECMFC-1 is a portable RF monitoring system that provides real-time pass/fail verification of man-portable Electronic Countermeasure (ECM) systems. It confirms whether an ECM device is actively transmitting across its programmed frequency bands — giving operators immediate confidence that their jammer is working before and during operations.
Purpose-built for military EOD, public safety bomb squads, and tactical teams operating man-portable ECM.
📄 Download Product Sheet (PDF)
How It Works
- Power on the unit and select an ECM profile
- Capture a 10-second ambient baseline with the ECM system OFF
- Power on the ECM system
- The display and LED panel immediately show PASS or FAIL for each frequency band
- Continuous monitoring with ~1-second full-spectrum refresh
PASS = detected energy exceeds baseline + configurable threshold per band. FAIL = no significant energy above baseline. Overall status: ALL PASS / PARTIAL / FAIL with audible alert on state change.
Key Specifications
| Frequency Coverage | 1 MHz – 6 GHz |
| Sweep Rate | Full spectrum in < 1 second |
| Monitored Bands | Up to 12 user-configurable bands per profile |
| Detection Method | Broadband energy vs. calibrated baseline, per band |
| Display | 7″ IPS touchscreen dashboard |
| LED Indicators | Per-band PASS/FAIL (green/red) + overall status |
| Audible Alert | State-change notification (configurable) |
| Battery Life | 8–10 hours per battery (two batteries included) |
| Weight | < 12 lbs complete |
| Operating Temperature | 32°F to 122°F (0°C to 50°C) |
| Enclosure | Ruggedized hard case with custom foam inserts |
| Setup Time | < 2 minutes from case to operational |
| Connectivity | Standalone — no network or internet required |
Default ECM Band Coverage
Pre-configured for common man-portable ECM platforms. Custom profiles available on request.
| VHF-Low | 30 – 88 MHz |
| VHF-High | 88 – 300 MHz |
| UHF | 300 MHz – 1 GHz |
| L-Band | 1 – 2 GHz |
| S-Band | 2 – 4 GHz |
| Cellular Low | 700 – 900 MHz |
| Cellular High | 1.7 – 2.7 GHz |
| ISM 433 MHz | 430 – 440 MHz |
| ISM 915 MHz | 902 – 928 MHz |
| ISM 2.4 GHz | 2.4 – 2.5 GHz |
| ISM 5.8 GHz | 5.725 – 5.875 GHz |
| GPS L1 | 1.570 – 1.580 GHz |
What’s Included
- IE-ECMFC-1 Main Unit (receiver, processor, display, LED panel — ruggedized case)
- Wideband discone antenna (UHF through microwave)
- Telescoping VHF whip antenna
- Antenna cable set with adapters
- Rechargeable battery packs (×2)
- USB-C charging cables (×2)
- Software drive with pre-loaded ECM profiles
- Field Operator Manual (spiral-bound, color)
- Quick Reference Cards (×2, laminated)
Software Features
- ECM Profile System — Pre-configured profiles for common ECM platforms. User-editable band definitions. New profiles loadable from USB.
- Baseline Calibration — Automated ambient noise floor capture compensates for local RF environment. Re-calibrate at any time.
- Dashboard View — Per-band power bar graph with PASS/FAIL indicators. Overall system status. Battery and session info.

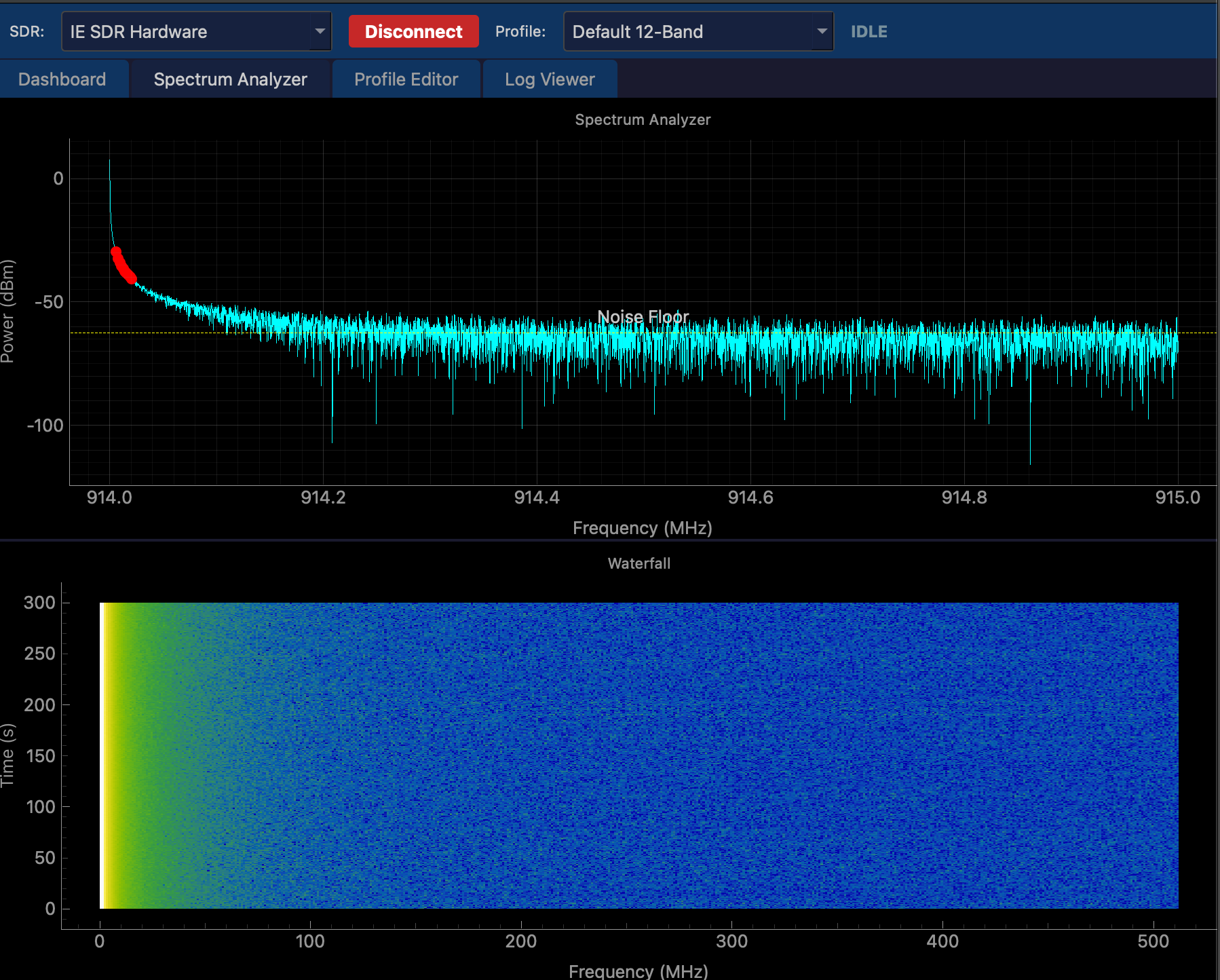

- Spectrum Waterfall — Optional full-spectrum waterfall display for advanced analysis.
- Data Logging — Timestamped CSV logs exportable via USB for after-action reporting.
Minimum Standoff Distance
The IE-ECMFC-1 includes integrated RF front-end protection. Minimum separation from the ECM transmitter is required during operation.
| 10W | 2 meters (7 ft) |
| 25W | 3 meters (10 ft) |
| 50W | 5 meters (16 ft) |
| 100W | 8 meters (26 ft) |
Full standoff tables for specific ECM platforms provided in the Field Operator Manual.
What This System Is — and Isn’t
It is:
- A real-time go/no-go verification tool for ECM systems
- A fast, portable answer to “is my jammer actually working on all bands?”
- Field-ready, battery-powered, and operable by any trained technician
It is not:
- A calibrated measurement instrument (not a spectrum analyzer replacement)
- An ECM or jamming system (receive-only — does not transmit)
- A signals intelligence or intercept platform
Accessories & Add-Ons
| Spare battery pack | $125.00 |
| Custom ECM profile (per platform configuration) | $325.00 |
| Extended antenna kit (directional, 400 MHz – 6 GHz) | $585.00 |
| On-site training integration (per day, plus travel) | $1,950.00/day |
Export / Regulatory
- Receive-only device — no transmitter certification required
- No ITAR-controlled components
- EAR99 — standard commercial export procedures apply
Lead Time: 8–10 weeks from order.
GSA Contract: #47QRAA24D0055 | SIN 333318TDTM
Contact: sales@improvisedelectronics.com | (619) 663-9433
